HFS: 5 – 10 Ton Pipe Flange Spreader
Product Type: SPREADERS No need to resort to "hammer and chisel" methods that wastes time…
Full Description
FEATURES
- Heavy duty precision construction
- High torque planetary gear drive
- 6 continuous groove bi-directional facing feeds for a gramophone finish (ASME Standard).
- Auto boring feeds
- Heavy duty adjustable base clamping bolts and extensions for quick setting and site operation
- Large section hardened slide ways to maintain long term accuracy
- Twin Arm Counterbalance – Doubles up as Milling Rail. Can use independently for milling applications
- Retractable Facing Arms
- 360 degree swivel tool post for groove details
SPECIFICATION
Min Facing Diameter : 28” (711mm)
Max Facing Diameter : 84” (2133mm)
Min Clamp Diameter :28” (711mm)
Max Clamp Diameter : 72” (1828mm)
Tool Post travel : 4” (102mm)
RPM : 24
Pneumatic : 2.7 Kw @ 6 Bar 80 CFM
W&Ds
Machine Weight 455 kg 1001lbs
Big base Assy 250 kg 550lbs
Shipping Box 1 1100 kg 2420lbs
Shipping Dimension
Length 208cms
Width 118cms
Height 90cms
| FACING FEED RATES | in/rev | mm/rev | Grooves/inch |
| 1 – In 1 – Out |
0.039” 0.021” |
0.31mm 0.55mm |
81 46 |
| 2 – In 2 – Out |
0.018” 0.031” |
0.46mm 0.79mm |
55 32 |
| 3 – In 3 – Out |
0.023” 0.039” |
0.60mm 1.00mm |
42 24 |

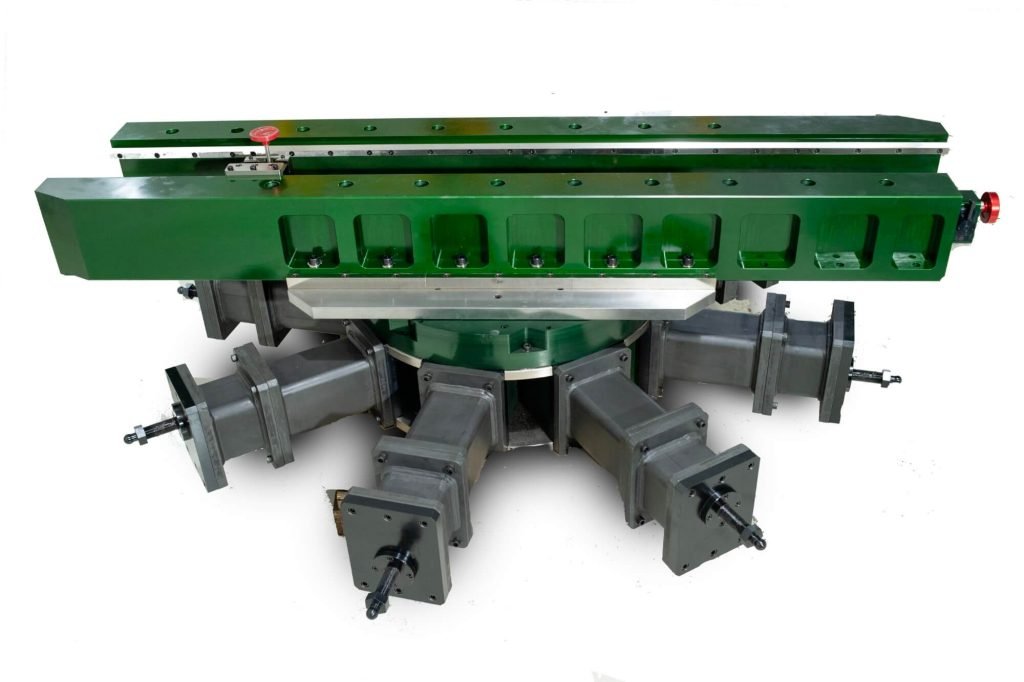

An internally mounted flange facing machine capable of producing a continuous groove gramophone finish to ASME Standard along with the capability to auto feed groove
details.
The machine is supplied complete with the following items;
- All clamping bases, mounting feet and extensions
- Toolkit including tools and inserts
- Air filter lubricator
- Hose connection
- Storage/ shipping box
- Packing list and manual
